You're on a relocation day, the desks are half moved, the cleaner is asking when the floor boxes can be lifted, and one last cable comes up short by just enough to ruin the handover. That's usually when the question lands on the IT lead's desk, do you join it, re-terminate it, or pull a fresh run and eat the delay? In UK offices, that decision sits right at the point where convenience meets structured cabling discipline, because an ethernet cable to cable connector can be either a tidy fix or the start of a certification problem.
The useful way to think about it is simple. A connector isn't just a bit of plastic in the middle of a run, it changes how the link behaves, how easy it is to certify, and how painful it will be to maintain later. The right choice depends on whether you're extending a patch lead, landing a horizontal run, building out a fully autonomous unmanned building units setup, or trying to preserve a warranty on a commercial electrical installation and certification package.
Why Joining Ethernet Cables Comes Up on Almost Every UK Office Project
An office move exposes cable reality very quickly. The wall that looked “close enough” on the plan turns out to be a metre and a half away from the desk cluster, the new comms cabinet sits on the opposite side of the room, and the existing leads don't quite reach the patch panel. At that point, the choice is rarely between joining and not joining, it's between a controlled join and a mess that nobody wants to certify.
The practical trigger points
Joining comes up during office moves, new fit-outs, server-room refreshes, and relocations where the measured run falls short. That's not a rare edge case, it's normal on lived-in sites where the plan changes after the first desks arrive. The problem is that the cheapest-looking fix often becomes the hardest one to support later, especially if it's a twist, tape, and hope job hidden above a ceiling tile.
A proper connector decision also affects warranty and handover quality. In structured cabling, the join is part of the channel, not an afterthought, and that matters when the installation is expected to serve for years rather than for a temporary pilot. The four options you'll see most often are RJ45 couplers, keystone jacks, punchdown blocks, and crimped RJ45 plugs.
A join that works for five minutes and a join that certifies are not the same thing.
The timeline of Ethernet itself explains why the connector question is still so common. IEEE 802.3 was published in 1983, and the T-568 wiring pinout was standardised in 1991, which is what made modular RJ45-style patching practical in commercial buildings. Later category upgrades kept the same connector ecosystem useful, with Cat 5e ratified in 2001 at 100 MHz and 1,000 Mb/s, Cat 6 following in 2002 at 250 MHz and 1,000 Mb/s, and Cat 6A ratified by 2009 at 500 MHz and 10 Gb/s (Ethernet history and category progression).
The practical takeaway is that joining cables is a design decision. If you know why the run is short, what speed it needs to support, and what the handover will demand, the connector choice becomes straightforward. If you don't, you end up trying to make a termination solve a routing problem, and that's where most bad office joins begin.
The Four Connector Types an IT Manager Will Meet
A lot of confusion starts because people use “RJ45 connector” to mean almost anything with eight contacts. In the field, that is too loose to be useful. The four hardware types do different jobs, sit in different parts of the structured cabling system, and carry different risks when they are used outside their lane.
| Connector | Best use case | Skill level | Typical link speed |
|---|---|---|---|
| RJ45 coupler | Short patch-style extension between two finished leads | Low to moderate | Depends on the quality of the surrounding cabling |
| Keystone jack | Faceplates, patch panels, consolidation points | Moderate | Cat5e, Cat6, Cat6A as specified |
| Punchdown block | Patch panels, distribution frames, centralised termination | Moderate to high | Depends on the block and cable category |
| RJ45 plug | Direct termination on stranded patch leads | Moderate | Cat5e, Cat6, and related patch applications |
What each one does
An RJ45 coupler is the quickest join. It is passive, female to female, and it bridges two male plugs. That makes it useful desk-side when a lead is too short, but it also means you inherit every weakness in the plugs on either side. If the cable is under tension, bent sharply, or dragged behind a pedestal, the coupler becomes the weak point.
A keystone jack is a modular outlet, not a joiner in the loose sense. It belongs in a faceplate or patch panel and suits work where the cable is part of a structured installation. A punchdown block, such as a 110-style IDC strip, is similar in purpose but more centralised, and it is commonly used where density and tidy administration matter. The RJ45 plug is the male termination you crimp onto stranded patch cable, which is why it is the wrong mental model for a permanent horizontal run.
If the link is meant to stay there, treat it like infrastructure, not like a spare lead with a problem.
The failure modes are different too. A coupler can sit inside a ceiling void and look fine until movement or PoE load reveals the issue. A badly seated keystone can pass a continuity test and still underperform. A punchdown done with the wrong tool or poor pair lay-up can become a slow fault that takes ages to find. And a plug used on the wrong cable type can crimp neatly while still failing the field environment.
There is a useful rule here, especially when teams are working from a relocation plan rather than a greenfield design. Keep the connector type aligned to the job, not to whatever is in the van. If you are comparing practical cable lengths for a site move, the guide to Cat5e cable lengths is a sensible planning reference, and if you want a broader view of twisted-pair basics, the twisted pair UTP cable overview sits in the right context.
Tools and Cables You Need Before You Touch a Connector
A rushed join often goes wrong before the jacket is even stripped. Someone reaches for the wrong plug, the wrong punchdown tool, or a tester that only checks continuity, then wonders why the link comes back as a fault call a week later. In a UK office fit-out or relocation, the right kit matters because the connector choice has to sit within the 90 m permanent-link budget and still behave under PoE, movement, and warranty scrutiny.
Match the cable to the termination method
For solid-core Cat5e and Cat6 horizontal cabling, the usual route is a keystone or punchdown termination. Those cables are meant to sit in the building fabric, so they work best when the termination is fixed and properly supported. For stranded patch leads, a crimped RJ45 plug is the correct choice, because the conductor construction is designed for flex and repeated handling.
The cable itself matters as much as the connector. Check the outer diameter, the conductor size, and whether the cable is solid or stranded before you choose the plug or jack. TE Connectivity's RJ45 guidance notes that 2-prong plugs are for stranded conductors only, while 3-prong plugs work with both stranded and solid copper, which is why the wrong match can look neat on the bench and still give trouble later (RJ45 connector guidance).
The practical kit list is straightforward:
- Cable stripper: Keep the jacket cut clean without nicking insulation.
- Punchdown tool: Match it to the IDC type, don't improvise.
- RJ45 crimp tool: Use one rated for the plug style you're fitting.
- Cable tester or certifier: Continuity is not enough for handover.
- Boots and labels: They save time later when faults need tracing.
- Velcro ties: Better than hard ties for staying within bend limits.
- IDC spares: Small, cheap, and often forgotten until a site visit goes sideways.
Where procurement gets it wrong
One of the most common mistakes is buying “RJ45 plugs” as if every plug fits every Cat6 cable. They don't. The plug must suit the jacket diameter and insulation range, otherwise the contact geometry is off, and the link may fail under movement or PoE load even if it looks fine on the desk. That is why a field engineer checks the cable first, then picks the connector, not the other way round.
A second mistake is ignoring the consumables that make the job maintainable. Boots in different colours help with service identification, especially in comms rooms with mixed-function leads, and spare IDC modules keep a tidy job from stalling halfway through a floor. The result is a site that can be labelled, traced, and altered without guesswork later.
For the cable side of the decision, a twisted pair UTP cable overview gives the right background on how the conductors behave in practice. For planning patch runs and relocation work, the guide to Cat5e cable lengths is still worth keeping beside your survey notes, but the better habit is to pair that planning with the actual cable sheath, connector body, and tool set you have on site.

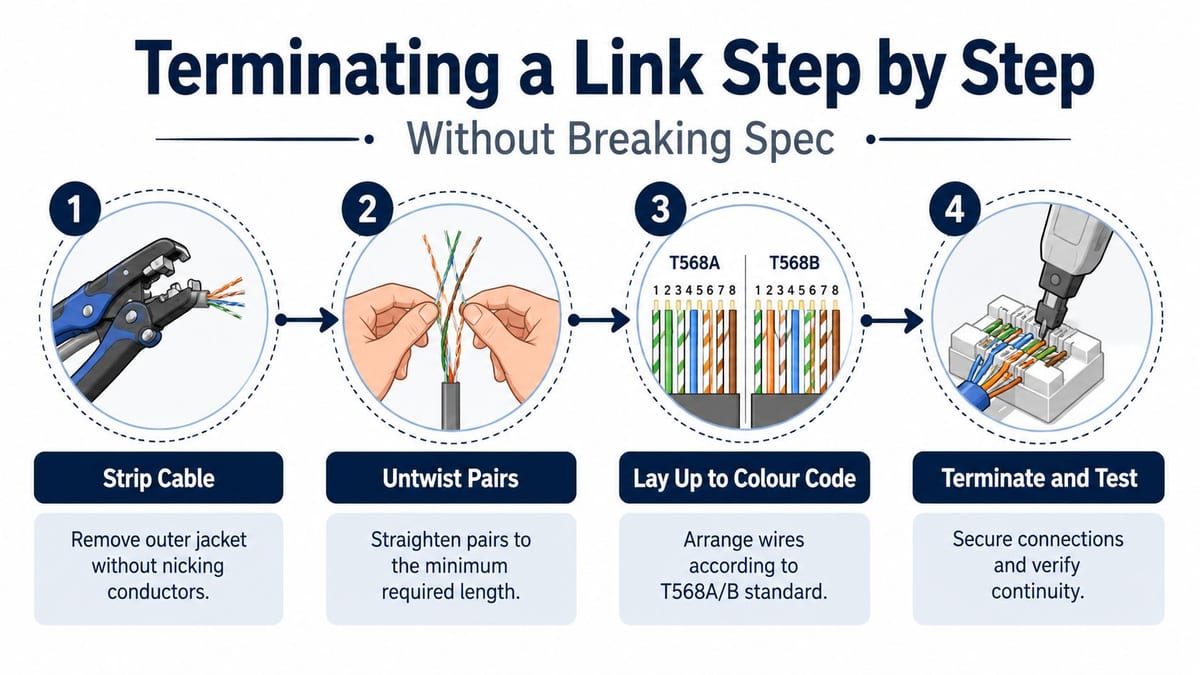

Terminating a Link Step by Step Without Breaking Spec
A clean termination starts with the jacket strip, but the important part is what happens next. The pairs must stay twisted for as long as possible, the conductors need to lay up cleanly to the colour code, and the finished terminations have to seat fully without strain. Get those details wrong, and a visually neat link can still fail when it's tested under movement or loaded by PoE.
The T568A pinout is the sensible UK reference point, with T568B also valid as long as both ends match. The key is consistency, not personal preference. RJ45 pinout guidance notes that T568B has become the default wiring scheme for twisted-pair structured cabling, and if you're unsure, choose 568B on both ends rather than mixing standards (RJ45 pinout reference).
Where installers usually slip
The first mistake is leaving too much untwist. Industry guidance says the untwist at terminations should stay within about half an inch to avoid packet errors or a dead link, and that small detail matters far more than most DIY videos admit (Ethernet geometry and bend guidance). The second is kinking the cable inside a boot, wall box, or tray, which can ruin the signal margin even though the pinout is correct.
The third is reusing a plug that's already been crimped once. That's a false economy. Once the IDC or plug contact geometry has been disturbed, you're no longer starting from a known-good state, and the eventual fault call costs more than the replacement plug ever did.
A termination that passes the eye test but fails under movement is a bad termination, not a nearly good one.
The electrical side matters too. For performance-critical installs, the connector-and-cable assembly should meet 100 ohms nominal impedance and keep NEXT, return loss, and attenuation within spec. A published Ethernet connector specification for Cat5e UTP requires TIA/EIA 568-C.2, 100 MHz operation, 22 dB per 300 ft attenuation at 100 MHz, 35 dB minimum NEXT at 100 MHz, and 20.1 dB return loss at 100 MHz (published connector specification).
The point isn't to memorise the figures, it's to respect what they mean. If a coupler, plug, or jack changes the geometry enough to upset those limits, the link can still light up but fail when the room is full, the trays are loaded, and the switch ports are busy. That's why a proper termination sequence ends with testing, not with “it clicks in, so it must be fine”. For a field view of plug work in practice, the internal Cat 5 plugs reference sits neatly alongside this.
Testing and Certification That Actually Catch Bad Terminations
A continuity tester will tell you the wire reaches the other end. It won't tell you whether the link will behave properly when the office is live, the PoE devices are drawing power, or the switch negotiates a higher-speed service. That's the gap between a quick install check and a proper handover.
Tester first, certifier when the job matters
A basic wiremap or LED tester is fine for confirming pin-to-pin continuity and gross wiring errors. It's useful on the bench and it catches obvious faults quickly. It's not a substitute for certification when the run needs to support a commercial handover, a relocation, or a long-lived structured cabling warranty.
The metrics that matter are wiremap, attenuation, NEXT, and return loss. Those are the checks that tell you whether the termination geometry, the connector choice, and the cable category are all working together. They also tell you when a coupler in the middle of the run is consuming link margin that you no longer have to spare.
A proper handover pack should include per-link results that can be saved and re-tested later. That matters in warranty claims, later moves, and fault tracing after the office has been occupied for a while. It also matters in managed estates where nobody wants to argue about whether the issue was present from day one.
What to demand on handover
- Wiremap results: Confirm every conductor lands where it should.
- Attenuation results: Check that the link isn't losing too much signal.
- NEXT results: Make sure crosstalk stays within acceptable limits.
- Return loss results: Confirm the connector geometry isn't reflecting too much signal.
- Saved reports: Keep the PDF evidence with the asset record.
The 90 m permanent-link rule sits underneath all of this. Standard Cat5e and Cat6 Ethernet runs are limited to about 90 m of permanent link plus up to 5 m of patch cable at each end, with total run length around 100 m before degradation becomes significant (Ethernet cable length guidance). A coupler isn't free in that budget. It uses physical length, adds another set of contacts, and can make an otherwise decent run harder to certify.
If you're comparing a full structured-cabling job with a quick join, the difference becomes visible. A join can be perfectly acceptable, but only if the cable category, connector family, and test results all sit comfortably inside the spec. For a broader project view, the internal structured cabling overview is a useful companion.
Common Failures on UK Installs and How to Trace Them
When a link drops, people blame the switch first. In practice, the fault is often at the termination layer, where small installation mistakes turn into intermittent behaviour that's hard to reproduce. A dead pair, a crushed cable, or a coupler under tension can waste hours if the fault path isn't approached in the right order.
Start where the problem is most likely to live
The quickest triage order is wall plate, patch lead, patch panel, then horizontal run back to the comms room. That sequence catches the majority of field issues because it starts with the part of the channel most often touched by people. If the problem appears only after someone moves a desk or swivels a screen, the fault is rarely in the switch.
A single dead pair often points to a conductor that wasn't fully seated during termination. The cable may test “present” on a basic checker, but one lane of the pair never makes stable contact. Intermittent drops usually point to mechanical stress, either because a coupler is under tension or because the cable has been wrapped too tightly to a tray.
There are a few recurring symptoms worth recognising:
- Speed downgrade to 100M: Often shows up when the installed cable or termination isn't really Cat6 performance, even if it looks like it should be.
- Crossover mistake: It may stay hidden until one of the devices is replaced or swapped.
- Movement-related flapping: Usually means the join is mechanically poor, not electrically “almost there”.
If a link fails only when someone brushes past it, the termination is already telling you what's wrong.
A coupler can be the right fix when you're extending a desk-side lead, but it becomes the wrong fix when it creates an awkward bend or makes the run hard to document. If the underlying issue is that the topology or device role needs a crossover arrangement, the cure isn't to keep adding joiners, it's to correct the cabling method. That's especially important in business estates where troubleshooting time matters more than saving one patch lead.
The cheapest corrective action is usually to re-terminate the affected end, then test again. If the run still won't certify cleanly, re-pull it. That's the point where a neat-looking join becomes a maintenance liability, and on managed office or NHS environments that's a headache nobody needs.

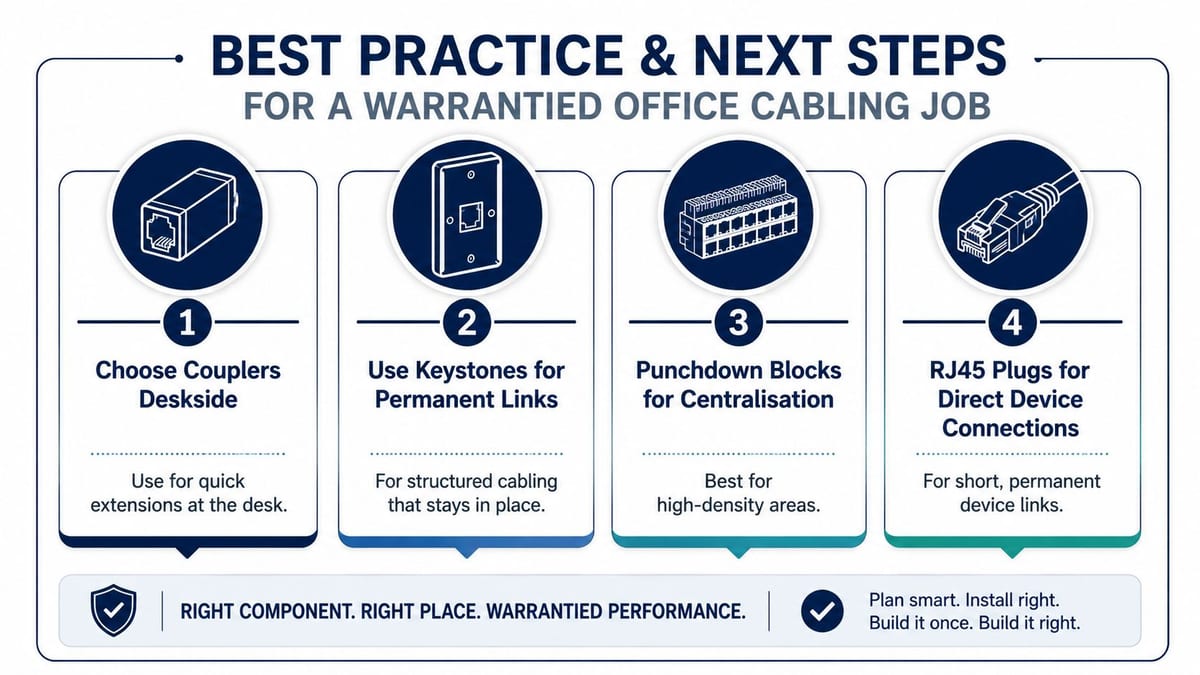

Best Practice and Next Steps for a Warrantied Office Cabling Job
The cleanest office cabling jobs don't treat connectors as emergencies. They choose the right termination method during design, document the link budget, and keep the handover evidence tied to each run. That approach protects both service quality and warranty cover, which is what matters when the space has to keep working after the move team has gone home.
Choosing the right hardware for the job
A coupler is sensible desk-side when you need a short extension and the cable will stay accessible. A keystone belongs in structured cabling that's meant to stay in place. A punchdown block makes sense where centralisation and density matter. An RJ45 plug is for direct device connections on short, stranded leads, not for improvising a permanent run.
That decision also affects who should do the work. An in-house IT team can handle simple, well-scoped joins where the cable type, connector family, and test expectations are already clear. Once the link becomes part of a wider fit-out, a relocation, CCTV integration, or a commercial electrical installation and certification package, it's usually more efficient to bring in a structured-cabling specialist who can deliver the documentation as well as the termination.
Constructive-IT is one option for that kind of work, because it delivers structured cabling, network and data-centre cabling, and certification as part of broader office relocation and fit-out projects. That matters when the connector choice has to sit alongside access control, power continuity, and future moves.
A sound quote should ask for three things. First, a documented link budget per run. Second, certification results for every installed link. Third, clarity on whether the join is a temporary extension, a permanent structured-cabling element, or part of a larger autonomous building or CCTV plan.
The practical rule is straightforward. Use the simplest connector that still respects the cable category, the 90 m permanent-link budget, and the handover requirements. If you can't keep all three aligned, the tidy answer is usually a fresh pull, not a more complicated join.
If you're planning an office move, a fit-out, or a cabling refresh and want the joins certified properly first time, speak with the engineering team at Constructive-IT. They handle structured cabling, office relocation support, and network infrastructure work where the cable map, the test results, and the handover all need to line up.
